Viper AS5160TO™ Walk Behind Orbital Auto Floor Scrubber (14" x 20" Head) w/ Traction Drive

SKU: VIP-56394138    Brand:Viper
Original price $6,579.00 - Original price $6,579.00
Original price
$6,579.00 - $6,579.00
Current price $6,579.00
Temporarily On BackorderEstimated Ship Date 1 – 3 wksOrder Now to Reserve
Sold Individually

Product Description

This Viper AS5160TO automatic floor scrubber is a great economical option for large floor cleaning and is much like Viper's 20" AS5160™ Floor Scrubber. Both come with an extremely large 16-gallon tank and a cleaning rate of over 20,000 ft²/hr. for tackling those large projects with ease. Both are backed by an 8-year warranty on the tanks & 5 years on parts along with free shipping to commercial or residential addresses in the continental United States. These machines are easy to operate with an easy-to-use control panel featuring an hour meter, battery capacity, brush on/off, vacuum on/off, and water dispensing controls all clearly displayed. The squeegee system also is equipped to leave the floor dry after a single pass.

So why is this one better? The AS5160TO is equipped with an orbital head that is great for intensive cleaning and maintaining consistent scrubbing on large coated floor areas. The directional cleaning of these heads holds in the cleaning solution better and allows for the machine to use less chemicals and water, making these machines better for the environment. This machine uses any of our 14" x 20" polishing pads, scrubbing pads, and stripping pads, allowing you to tackle a range of jobs with this machine.

Another two big features of the AS5160TO is that it is a traction drive model and comes with a 5-year warranty on the deck isolators. The traction drive allows you to control your speed up to 2.5 mph, allowing you to set the cleaning pace to match your desired comfort level. The oscillating orbital head provides a lot of vibration, causing the isolators to be replaced often. This may be true for the competition, but not for this Viper machine. The isolators are backed by a 5-year warranty, which is the longest in the industry!

If this Viper auto scrubber is not exactly what you're looking for, please take a look at our full line of walk-behind auto scrubbers.

red floor spacer pad Very Important:red spacer pad is recommended for use on this oscillating floor machine. If you attach some of the thinner accessories to the underside of your machine it will damage your floor. The pad driver has many small pins that hold a pad on - without enough padding those pins will score your flooring.


  • Orbital cleaning allows for intensive cleaning and fits into corners better than rotary scrubbers.
  • Traction Drive with variable speeds up to 2.5 miles per hour.
  • Variable dispensing rates for different soil levels on different floor types.
  • The easy-to-use control panel allows for any user to quickly learn how to operate the scrubber.
  • Large capacity 16-gallon solution tank is larger than most competitor models in the same price range.

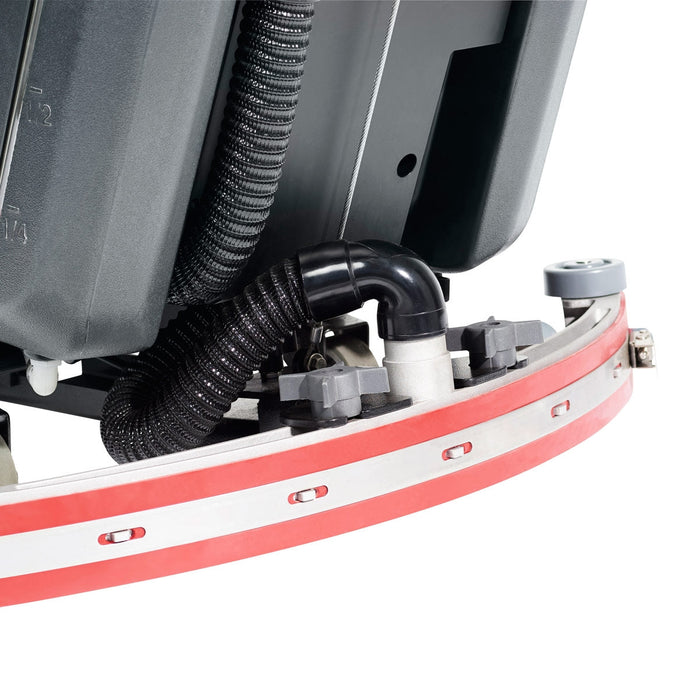

  • Follow behind squeegee assembly will leave the floor bone dry immediately after scrubbing.
  • Can easily scrub a 50,000 ft² facility on a full charge.
  • Comes backed by an 8-year warranty on the tanks & 5 years on parts.

Chemical Recommendations


Quick Overview

  • Pad driver, batteries & onboard charger included
  • 14" x 20" battery auto scrubber
  • 16-gallon solution / 16-gallon recovery

Customer Reviews

Be the first to write a review


Viper AS5160T Use and care

Product Information + Specs

Manufacturer Sku
130 Ah wet batteries
Battery Type
(2) 130 Ah Wet
Brush Motor
750 Watts
Brush/Pad Pressure
110 lbs.
Brush/Pad Speed
2200 RPM
Cleaning Rate Per Hour
23,680 sq. ft.
Cleaning Width
20 inches
Black / Red
52" L x 22" W x 39" H
Drive System
Traction Drive
Flow Control
0 - 0.63 gal/min
130 Ah wet batteries, onboard charger, pad holder
Noise Level (dB)
69 ± 3 dBA
Packaged Weight (lbs.)
Power Source
Product Type
Hard Floor Cleaning Machines
Recovery Tank Capacity
16 gallons
Run Time
2.5 hours
Scrub Style
Solution Capacity
16 gallons
Square Footage Cleaned on a Full Charge (Run Time * Rate)
59,200 sq.ft.
Squeegee Width
31 inches
Vacuum Motor
350 Watts
Body - 8 years (2 years labor*)
Parts - 5 years (2 years labor*)
Vac Motor - 1 year (1 year labor*)
Batteries - Prorated up to 18 months
Travel - 180 days
*All labor must be from an authorized service center.
Water Lift
