HEPA Filter Kit (#45-0854-5) for the CleanFreak® 19 Gallon Wet / Dry Vacuum

Product Description

This HEPA Filter is an optional accessory for the CleanFreak 19 gallon wet / dry vacuum. It is essentially used in place of the dry cloth filter bag that comes standard with the vacuum. It is used for very fine recovery where you don't want to be reintroducing fine particulate back into the air through the exhaust of the vac motor. This kit also comes a 3 pack of microfiltration bags that help with containing and disposing of fine particles. Also, this kit comes with a non-HEPA foam filter which is to be used to protect your motor from debris when vacuuming up liquids.
Please Note: Both the foam filter and the microfiltration bags are NOT meant to be used with the pleated HEPA filter. Please follow the packaged instructions accordingly.

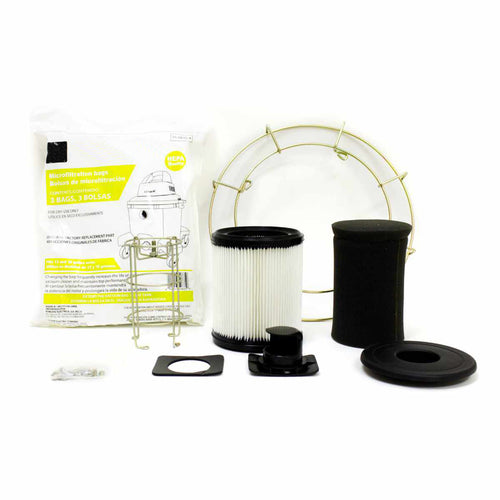

Includes

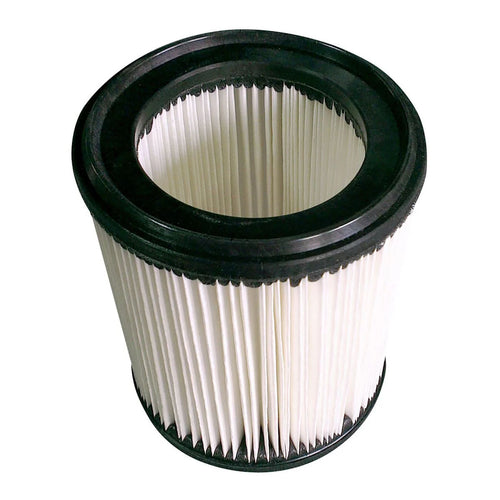

• HEPA pleated Filter
• 3 microfiltration Bags
• Foam Filter
• Filter Cage
• Aligning Cage
• Filter retainer
• Replacement coupling for microfiltration bags
• Replacement Coupling Seal

Instructions

HEPA Filter
For Dry Vacuuming

Foam Filter
For Wet Vacuuming

Microfiltration Bags
For Dry Vacuuming

Pleated HEPA Filter

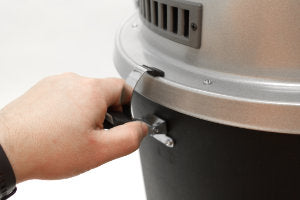

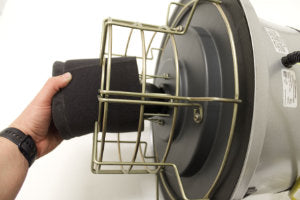

1. Pull the tank latches to release the vacuum head from the tank.		2. Turn the vacuum head upside down and remove the foam filter.

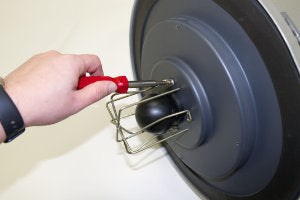

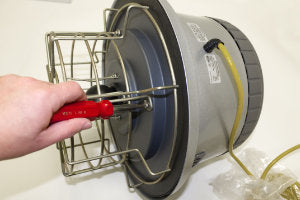

3. Unscrew the 4 screws that hold the large metal cage.		4. Unscrew the 4 screws that hold the float cage.

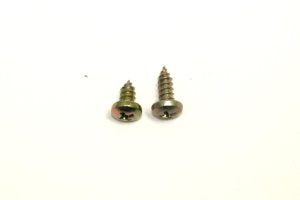

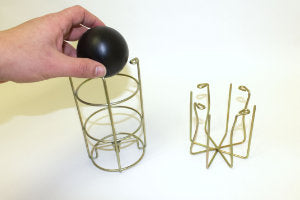

5. Note that the 4 screws that hold the larger cage are longer than the ones that hold the float cage.		6. Transfer the Float to the new filter cage.

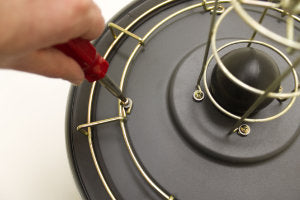

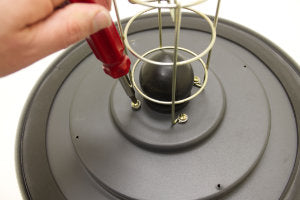

7. Screw on new float cage using the shorter screws.		8. Screw on the new larger cage.

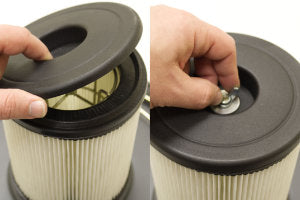

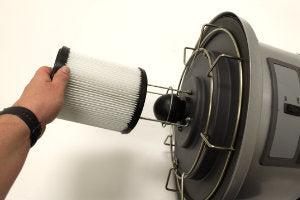

9. Place the HEPA pleated filter over the float cage.		10. Secure the HEPA Filter using the filter retainer and the washer & wing nut.
11. Place the vacuum cleaner head back into position and secure it with the latches.

Foam Filter

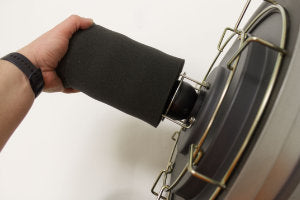

1. Pull the tank latches to release the vacuum head from the tank.		2. Remove pleated filter (and wingnut, washer & retainer) or foam filter from the float cage.

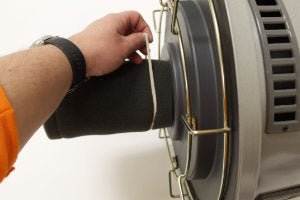

3. Place foam filter over float cage.		4. Secure foam filter with rubberband (not included).
5. Place the vacuum cleaner head back into position and secure it with the latches.

Microfiltration Bag Installation

1. Pull the tank latches to release the vacuum head from the tank.		2. Remove pleated filter (and wingnut, washer & retainer) or foam filter from the float cage.

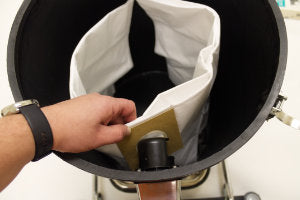

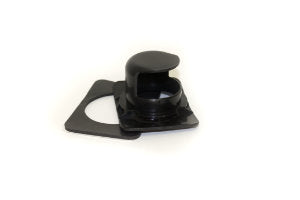

3. Check that the vacuum cleaner has the right coupling. If it doesn’t match the one included in the kit, remove the current coupling and install the new coupling and coupling seal.		4. Slide the cardboard head/rubber seal over the coupling and past the plastic “nubs” on the coupler.
5. Place the vacuum cleaner head back into position and secure it with the latches.
