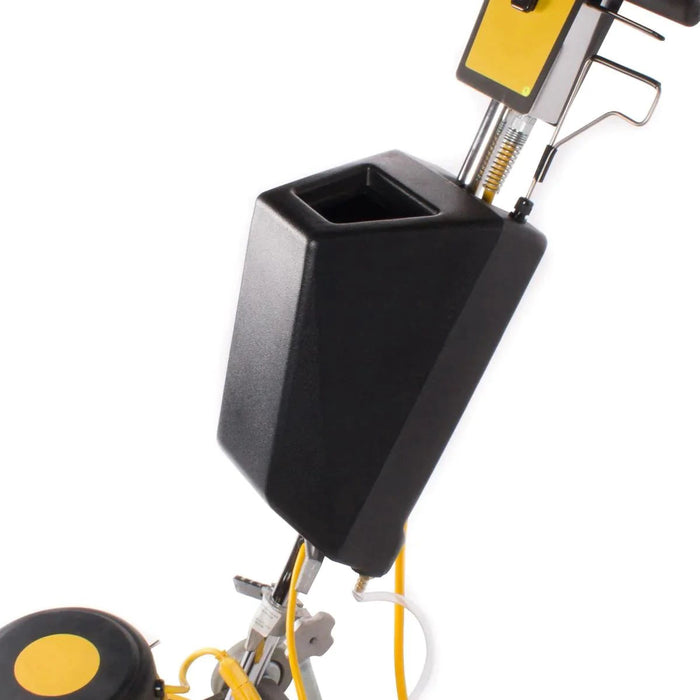

This black solution tank fits all of our rotary floor buffing scrubbers. It is a very handy accessory that can carry 4 gallons of your favorite carpet scrubbing chemicals or floor scrubbing solutions as you scrub. This tank comes with the necessary hardware to hook it up to your buffer, and is black in color. It will fit all round handle models, and some square handle buffers. Please note that some floor buffers require a smaller 3/8" diameter hose. We offer a 1/2" to 3/8" O.D. conversion kit thatwill allow this tank to be attached correctly to these machines.

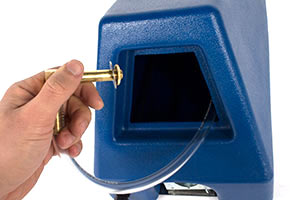

2. Remove the hose and fittings from inside the tank and set aside.

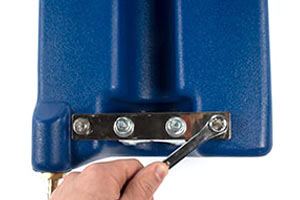

3. Remove the 2 u-bolts and mounting brackets from your handle.

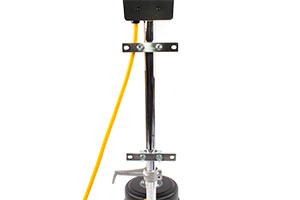

4. Attach the 2 u-bolts and mounting brackets to your handle. For larger handles, the brackets on the u-bolts can be omitted. Leave bolts loose to allow for adjustment

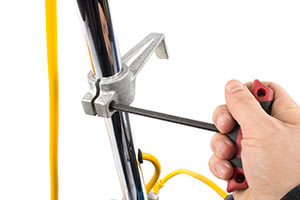

5. If room is needed, loosen and lower the cordwrap bracket on your handle.

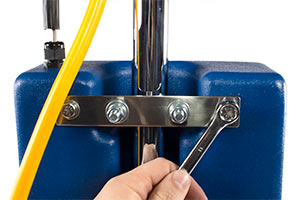

6. Attach top bracket to the solution tank.

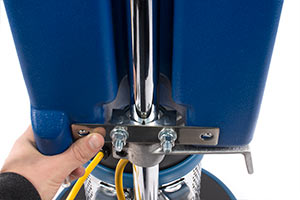

7. Line up the bottom bracket and attach to the solution tank.

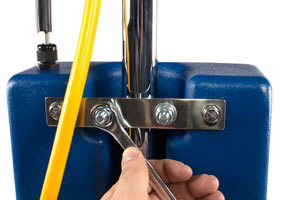

8. Adjust tank to proper height and tighten u-bolts

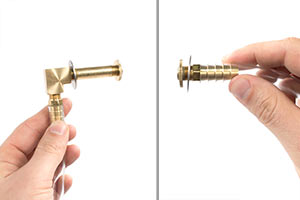

9. For thinner aprons, remove the angle and extension and put the washer and nut on the hose fitting. For thicker aprons, keep the angle and extension on the hose.

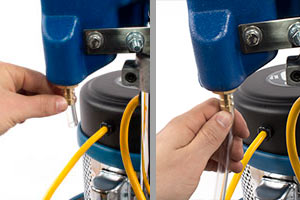

10. Remove the fitting protector and attach the main hose to the hose fitting.

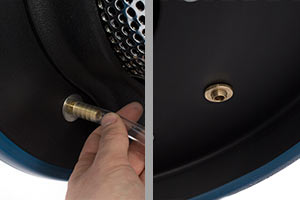

11. Locate the hole in the apron that is made for the solution hold. Some machines have a cap in the hole. If there is a cap, remove it. Remove nut from fitting. If the fitting is too large for this hole, you will need a converstion kit and follow these instructions.
12. Slide extension rod through the hole in the apron, making sure the washer is on top. Attach the nut to bottom of rod. Make sure to adjust rod, so it will not rub pad driver, or brush!
2. Remove the hose and fittings from inside the tank and set aside.

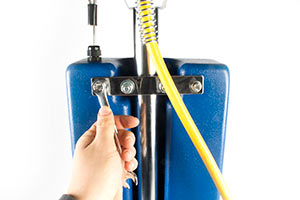

3. Remove the 2 u-bolts and mounting brackets from your handle.

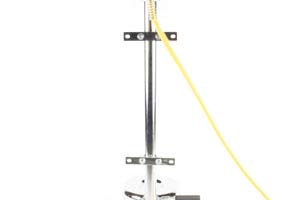

4. Attach the 2 u-bolts and mounting brackets to your handle. For larger handles, the brackets on the u-bolts can be omitted. Leave bolts loose to allow for adjustment
5. Attach top bracket to the solution tank.

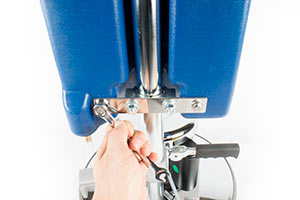

6. Line up the bottom bracket and attach to the solution tank.

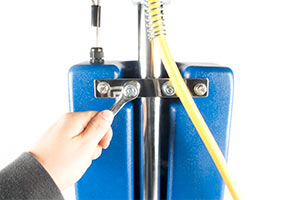

7. Adjust tank to proper height and tighten u-bolts.

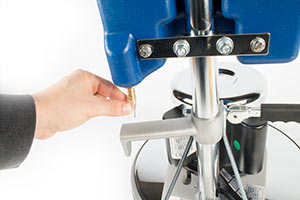

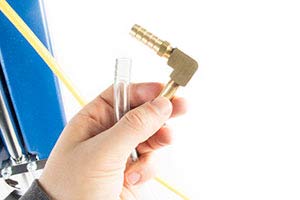

8. Remove the the "L" fitting from the supplied hose.

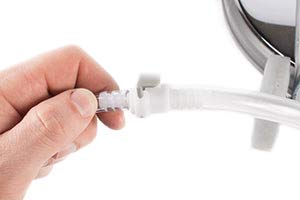

9. Remove the fitting protector.

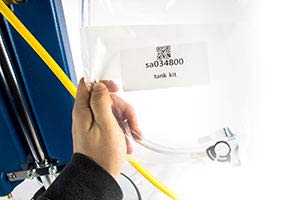

10. Check your Conversion Kit for the 3/8" hose and the two quick connect ends.

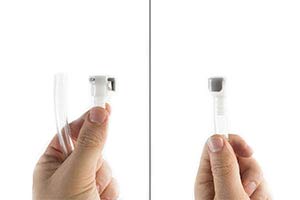

11. Put the larger quick connect fitting on the 1/2" hose.

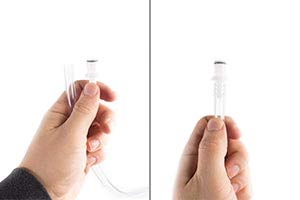

12. Put the smaller quick connect fitting on the 3/8" hose.
13. Take the two hoses with the quick connects on them, and join the two quick connects.
14. Attach 1/2" hose to the solution tank.

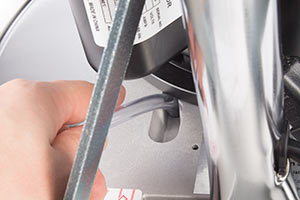

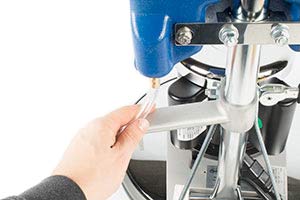

15. Put the 3/8" hose into the hole in the apron near the motor. If you have too much hose, you can cut the hose to length. The hose should be snug in the hole and may need to be twisted back and forth to get the hose to stay on the apron.

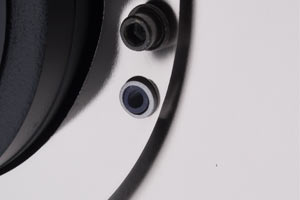

16. Check the bottom of the apron to make sure you can see the hose. The hose should come flush with the apron. Hose should not extend beyond the apron, so it will not rub pad driver, or brush!
